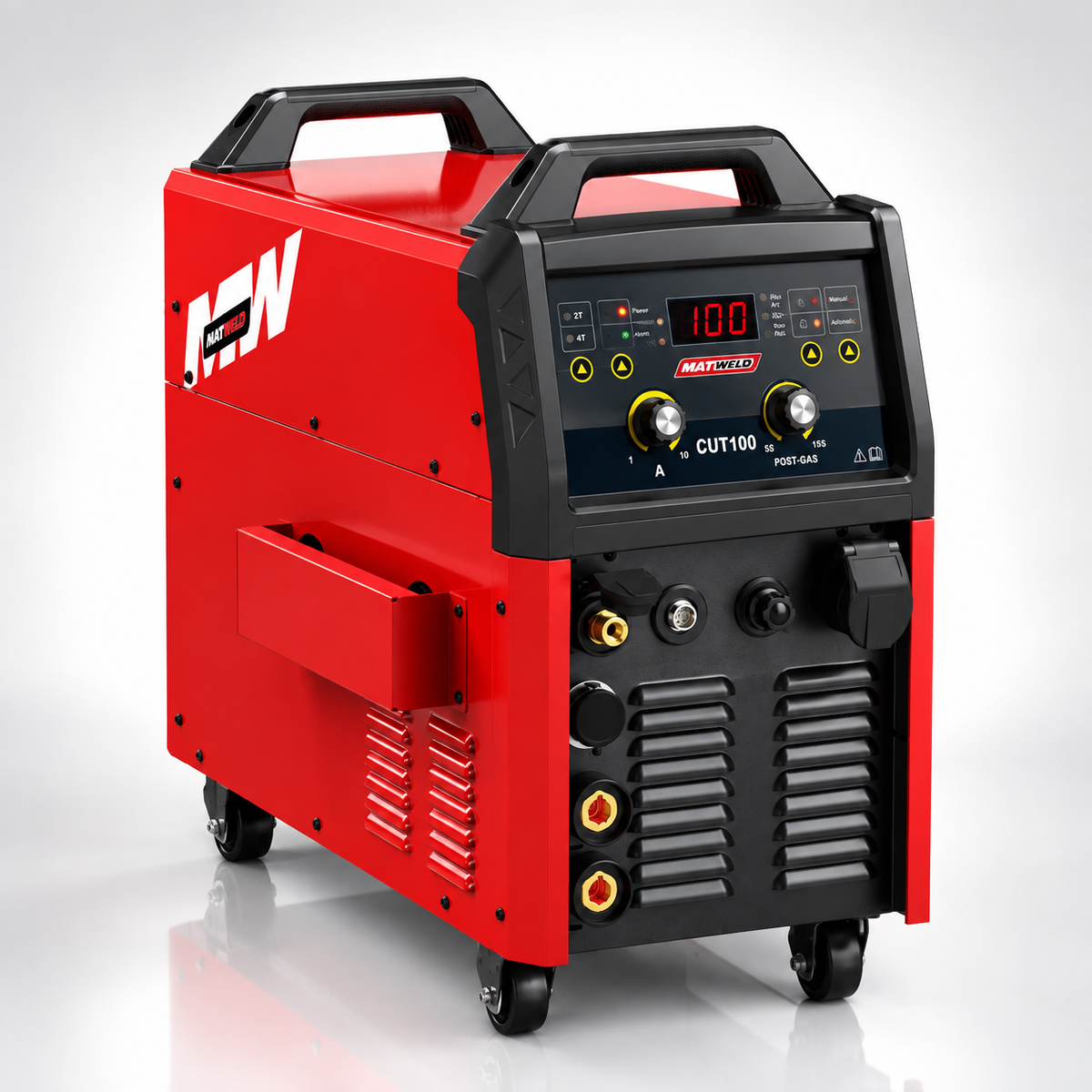

MatWeld Cut100 With Compressor

MatWeld Cut100 With Compressor, built by MatWeld for regular plasma cutter use on site or in the workshop.

• 2T/4T torch trigger modes
• Gas check function for pre-flow torch testing
• HF (high-frequency) arc start
• IGBT inverter technology for efficient, compact power delivery
• VRD (voltage reduction device) for added operator safety
• Post-flow air purge protects torch consumables
• Supplied complete with earth clamp, electrode holder, and PT80 cutting torch
• Input voltage: 380V, 3-phase, 50/60Hz
• Max input current: 25.3A
• Power factor: 0.75
• Duty cycle: 60%
• Output (cutting) current: up to 100A
• Max cutting thickness: 30mm
• Quick connector size: 35-50
• Torch: 5m PT80 (MATPT8000)
